Installing your own diy ductless mini split used to mean renting a vacuum pump, buying gauges, and worrying about refrigerant certification. That era is fading. This guide walks you through every stage of a diy mini split project-from sizing and brand selection to startup and fine‑tuning-so you can decide if this is the right investment for your house.
Quick Answer: Can You Really Install a DIY Ductless Mini Split Yourself?
Modern diy ductless mini split kits ship with factory pre‑charged line sets with quick connect “double seal” valves that eliminate the need for a vacuum, recovery equipment, or EPA Section 608 certification. If you can drill a hole through a wall and run basic electrical wiring, you can likely handle a single‑zone install in a weekend.
A common industry trap for DIY shoppers is the term “pre‑charged condenser.” Almost every outdoor condenser arrives pre‑charged with refrigerant, but this does not make a system DIY‑friendly. A true DIY‑capable system specifically requires a factory‑sealed, pre‑charged line set with quick‑connect fittings. Without that specific component, you are still required to use a vacuum pump, gauge set, and proper refrigerant handling practices—regardless of the condenser’s label.
A DIY install makes sense when you have:
- A single room or zone-garage, workshop, bonus room, or home office-between 200 and 800 sq ft.
- Easy access to an exterior wall for the line set penetration.
- An existing 115V or 230V circuit (or willingness to add a dedicated one).
- Comfort with carpentry‑level tasks: drilling, mounting, and light wiring.
Call a licensed hvac technician instead when:
- You need a multi‑zone system with 2–6 indoor units and a single outdoor condenser unit.
- Line set runs exceed 35 ft or require routing through multiple floors.
- Second‑story placement demands tall ladder work above 15 ft.
- Your electrical panel needs an upgrade, or local codes require licensed HVAC permits.
Brands like Zone Air, Pioneer, Senville, and MrCool all offer popular kits on the market today. The rest of this article walks through planning, installation, and setup in detail.
How a Ductless Mini Split Heat Pump Works
A ductless mini split is a compact heat pump system with two main elements: one outdoor unit and one or more indoor air handlers, connected by a bundled line set.
- Outdoor unit: Houses the compressor, fan, and reversing valve. It sits on a ground pad or wall mount bracket and is responsible for moving heat into or out of your house depending on the mode.
- Indoor wall mount air handler: Contains a quiet fan, evaporator coil, and washable filters. It hangs high on an interior wall and delivers conditioned mini split air directly into the room-no ductwork needed.
- Line set bundle: Two insulated copper refrigerant lines, a control wire, and a condensate drain hose wrapped in protective sheathing. DIY kits typically ship in 16–25 ft lengths.
- Heat pump function: The same system handles both heating and cooling by reversing refrigerant flow. Many 2024–2026 models maintain performance down to about −13 °F, making them viable even in colder climates.
An intriguing aspect of this technology is that heat pumps can extract usable thermal energy even from extremely cold outdoor air by leveraging the principles of the vapor‑compression cycle.
In cooling mode, the compressor sends high‑pressure refrigerant vapor to the outdoor coil, where it condenses and sheds heat. The liquid then passes through an expansion device, drops in pressure, and travels to the indoor coil where it evaporates-absorbing heat from your room. In heating mode, the reversing valve flips the cycle so the inside unit releases heat indoors. This technology delivers all season comfort from a single, efficient system.
Planning Your DIY Ductless Mini Split Project
Good planning prevents expensive mistakes. Before you shop for equipment, nail down three things: room size, power supply, and placement of indoor and outdoor units.
- Sizing by sq ft: Use these rules of thumb-about 9,000 BTU for 250–400 sq ft, 12,000 BTU for 400–550 sq ft, and 18,000 BTU for 600–850 sq ft. Insulation quality, ceiling height above 8 ft, and window orientation all affect cooling capacity needs.
- Manufacturer sizing charts: Check specific guides from Zone Air, Pioneer, or Senville for precise BTU recommendations. In very hot or cold climate zones, you may need to adjust up a tier.
- Single‑zone vs. multi‑zone: A single indoor unit is the perfect solution for a garage, bonus room, or office. Multi‑zone systems covering 2–6 spaces typically require professional installation due to longer line runs and complex outdoor unit sizing.
- Power requirements: Smaller 9K–12K BTU units often run on a standard 115V, 15A circuit. Units at 18K BTU and above usually need a 208–230V dedicated circuit with a 30A double‑pole breaker-for example, the Zone Air 18K 230V model specifies exactly that.
- Permits and inspections: Many U.S. cities tightened enforcement of HVAC and electrical permits after 2020. Check your local jurisdiction before drilling the first hole.
Choosing the Right DIY Mini Split Kit & Brand
Not every ductless mini kit is equally DIY‑friendly. Some are fully pre‑charged with quick‑connect fittings; others still require a vacuum pump, gauges, and flare fittings.
- Zone Air (top pick): Zone Air’s 2026 DIY lineup ships with pre‑charged R‑454B quick‑connect line sets across all models. The 9K and 12K wall mounts run on standard 115V for easy installation, while the 18K model delivers an impressive SEER2 of 23.5 and HSPF2 around 10. Indoor sound levels start at roughly 34 dB(A) on low-barely louder than a whisper. Pricing runs approximately $1,899–$2,499 for single‑zone kits.
- Pioneer (#2): A strong value play with a wide range of BTU sizes and detailed manuals. Most Pioneer models still use traditional flare fittings and require vacuum and charge, so factor in tool rental or a technician call if you go this route.
- Senville (#3): A Canadian‑based brand offering cold‑climate models with intelligent Wi‑Fi control and remarkably low noise-the LETO series can dip below 25 dB(A) indoors. A solid choice for bedrooms and living spaces where quiet operation matters.
- MrCool (#4): Known for its No‑Vac quick‑connect line sets that eliminate vacuum and brazing steps. Line sets come in 16, 25, 35, and 50 ft lengths. A proven option for first‑time installers.
| Brand | BTU Range | SEER2 (approx.) | True DIY Pre‑Charged? | Price Range (Single‑Zone) |
| Zone Air | 9K–18K | 22–24 | Yes | $1,899–$2,499 |
| Pioneer | 9K–36K | 21–22 | Usually no | $1,200–$2,200 |
| Senville | 9K–36K | 18–22 | Some models | $1,300–$2,400 |
| MrCool | 9K–36K | 20–22 | Yes (DIY line) | $1,500–$2,800 |
Tools, Materials, and Safety Checks Before You Start
Most of this project is carpentry, drilling, and mechanical assembly-not rocket science. But electrical and structural safety deserve full attention.

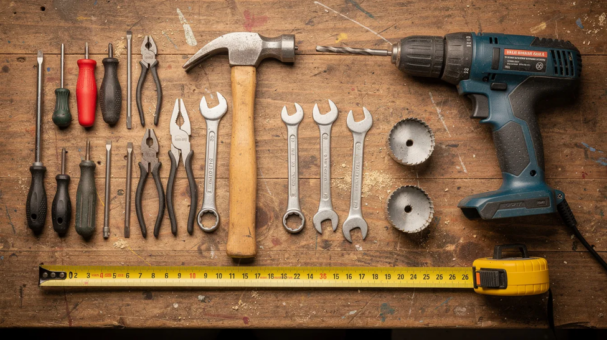

- Core tools: Drill with a 3–3.5″ hole saw, masonry bit (for brick or block walls), level, stud finder, tape measure, torque wrench (if your manufacturer’s specifications require one), sturdy ladder, and basic hand tools-screwdrivers, socket set, utility knife. You won’t need special tools beyond what most DIYers already own.
- Materials: Indoor mounting plate, outdoor wall mount bracket or pre‑cast concrete pad, line set cover kit (line hide), UV‑resistant tape, spray foam or silicone caulk, lag bolts, and vibration‑damping rubber pads for the outdoor condenser.
- Personal safety gear: Safety glasses, work gloves, hearing protection when drilling masonry, and sturdy shoes-especially when lifting an 80–120 lb outdoor unit with a helper.
- Electrical verification: Confirm your panel has enough capacity and that breaker type and wire size match the manufacturer’s specifications. If you need a new 230V circuit, consult a licensed electrician.
- Dry‑run layout: Before drilling any hole, tape out the indoor unit’s position on the wall and mark the outdoor unit’s footprint on the ground or exterior wall. Double‑check distances between the inside unit, outdoor unit, and service disconnect box.
Positioning and Mounting the Indoor Unit
Where you hang the indoor unit directly affects airflow, comfort, and how cleanly the line set exits the wall.
- Location: Choose a high wall spot with at least 4–6 inches of clearance above the unit and several feet of open space below. Avoid spots near stoves, in direct sunlight, or above electronics that generate heat.
- Wall plate and template: Most modern kits include a metal mounting plate and a cardboard template. Use the template to mark stud locations, screw points, and the center of the line set hole.
- Backing support: If studs don’t align with the template-common on older plaster or thin garage walls-build a simple wood backing frame attached to at least two studs. This prevents the unit from pulling away from the wall over time.
- Line set routing: You can route left, right, or straight back through the wall. Many DIYers prefer the straight‑back option because it minimizes bending and keeps the line set length as short as possible.
- Test hang: Hang the indoor unit on the plate and confirm it’s level and secure before you commit to the full‑size wall penetration. A crooked unit affects condensate drainage and looks unprofessional.
Drilling the Wall Penetration and Routing the Line Set
This is the commitment point. Once the 3–3.5″ hole is through your wall, moving the diy system is difficult and costly.
- Pilot hole first: Drill a small pilot hole from inside to outside at a slight downward slope toward the exterior. This angle ensures condensate drains out naturally and doesn’t pool inside the wall.
- Full‑size hole saw: Switch to the large hole saw and cut through the wall. For wood sheathing and siding, a standard bi‑metal saw works fine. For brick or stucco, use a masonry core bit and keep the hole aligned with the indoor unit’s outlet.
- Uncoiling the line set: Carefully uncoil and slowly bend the pre‑insulated line set bundle using wide, gentle arcs. Never kink the copper refrigerant lines-a sharp bend restricts flow and can cause a leak or compressor failure.
- Feeding through the wall: Pass the line set, control cable, and drain hose through the hole from inside to outside. Protect the bundle from sharp edges with the included plastic sleeve or a trim ring.
- Seal everything: After final routing, fill gaps around the bundle with spray foam or high‑quality exterior silicone caulk. A proper seal keeps out bugs, drafts, and water-small details that protect your install for years.
Mounting the Outdoor Unit: Wall Bracket vs. Ground Pad
Wall brackets are the most popular choice for small 9K–18K BTU systems because they keep the condenser off the ground, away from flooding, and clear of yard debris.
- Choosing a location: Position the outdoor unit at least 12–24 inches from the exterior wall for adequate airflow. In cold climate areas, mount it at least 18 inches above the expected snow line. Keep it away from bedroom windows to minimize perceived noise.
- Bracket assembly: Level the steel crossbar, use appropriate anchors in brick, block, or structural framing, and attach support arms with anti‑vibration pads.
- Lifting and securing: With a helper, lift the outdoor unit (roughly 70–100 lb for common sizes), set it on the bracket arms, align the rubber feet with bolt holes, and fasten everything with a socket wrench.
- Level check: Verify the outdoor condenser is perfectly level front‑to‑back and side‑to‑side using a magnetic level. An unlevel unit causes compressor noise, oil return issues, and premature wear.
- Service clearance: Maintain at least 24 inches on sides and back, and 60 inches in front per most manufacturer instructions. This access space matters for both airflow and future maintenance.
Connecting Refrigerant Line Sets, Checking for Leaks, and Powering Up
This is the most technical stage-and the one where pre‑charged quick‑connect fittings save you the most time and worry compared to traditional hvac systems.
- Pre‑charged connections: On kits from Zone Air, MrCool, and similar brands, factory‑sealed valves are connected by hand‑threading the fittings, torquing to the manufacturer’s spec, and then opening the service valves with a hex wrench in the prescribed order. No vacuum pump, no gauges, no refrigerant handling.
- Excess line management: Route any extra line set in large, gentle loops behind or beside the outdoor unit. Shield exposed runs with line hide covers for UV and physical protection.
- Leak test: Spray every union and connection with a mix of dish soap and water while the system is under pressure. No bubbles should appear. If you spot a leak, tighten the fitting and test again.
- Non‑pre‑charged kits: If your kit is not pre‑charged, a licensed hvac technician should connect gauges, evacuate the system to a deep vacuum, and weigh in refrigerant per the nameplate charge. Don’t attempt this without proper certification and equipment.
- Electrical wiring: Run appropriately sized cable from the panel to a weatherproof disconnect, then to the outdoor unit. Match wire colors and terminal labels on indoor and outdoor units exactly. If you’re not fully qualified, hire an electrician-this is not the step to cut corners on.
Startup, Wi‑Fi Setup, and Fine‑Tuning Comfort
The moment you flip the disconnect on and hear the compressor hum is deeply satisfying. Make it count by running through a proper test sequence.
- Initial startup: Reinstall indoor filters, close the electrical disconnect, and power on following the manufacturer’s sequence-typically cooling mode first. Let the system run for 15–20 minutes before evaluating temperature.
- Temperature check: Use an inexpensive infrared thermometer to measure supply air temperature at the indoor unit and compare it to room temperature. A healthy ac system in cool mode should deliver air 15–20 °F below ambient.
- Smart control and Wi‑Fi: Connect the built‑in Wi‑Fi module or included adapter by putting the unit into “AP” pairing mode and joining via your 2.4 GHz router. Most apps offer scheduling, geofencing, and energy use graphs for intelligent, app‑based control of every zone.
- Fine‑tuning: Adjust louver position, fan speed, and operating modes (Cool, Heat, Dry, Auto). If your model offers a “Follow Me” feature with a remote sensor, enable it for more accurate temperature readings.
- Ongoing efficiency tips: Set realistic temperatures (don’t overcool), clean filters every 30–60 days, and keep shrubs at least 2–3 feet from the outdoor unit to maintain unobstructed airflow.
Costs, Savings, and When to Call a Pro Instead
A diy mini split project is ultimately a financial decision. Here’s how the numbers break down.
- DIY equipment cost (2025–2026): Roughly $1,800–$2,500 for a 9K–12K BTU single‑zone ductless mini split; $2,500–$4,000 for higher‑capacity or multi‑zone kits. Zone Air dual‑zone bundles, for example, run about $3,499–$3,999 for two indoor heads plus one outdoor unit.
- Professional installation cost: HomeAdvisor reports a typical range of $2,000–$5,000 for a single‑zone install and $5,000–$15,000 for multi‑zone, depending on region and complexity. A DIY approach can save you thousands.
- Energy savings: Mini splits with SEER2 ratings in the high teens to low 20s can cut cooling cost by up to 30% compared to older central ac with duct losses of 20–30%. Heating in efficient heat pump mode can also save substantially over electric baseboard or propane, particularly when you only condition occupied spaces.
- When to call a pro: Structural changes, refrigerant work on non‑DIY kits, second‑story ladder work above 15 ft, panel upgrades, or any uncertainty about electrical safety or code compliance. Don’t let pride turn a manageable project into an expensive repair.
- Protect your investment: Keep manuals, permit approvals, and warranty paperwork together in one folder. Schedule a professional maintenance check every two to three years to keep performance at its peak and preserve warranty coverage.
A diy ductless mini split is one of the smartest weekend projects a handy homeowner can tackle-provided you size correctly, follow the manufacturer’s specifications, and know your limits. Start with a single‑zone install in a garage or shop, build confidence, and you’ll quickly see why mini splits have become the go‑to solution for efficient, room‑by‑room comfort across every climate zone.
