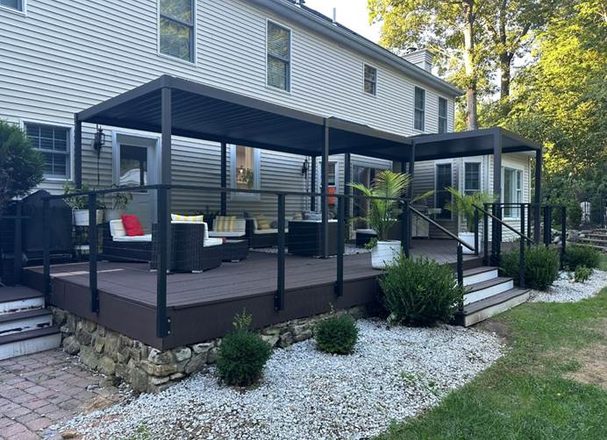

Cable railing has become one of the most popular home improvement upgrades for modern decks, stairs, and balconies. It delivers a sleek, minimalist look without blocking your outdoor view. Many homeowners tackle it as a DIY project to cut professional installation costs.

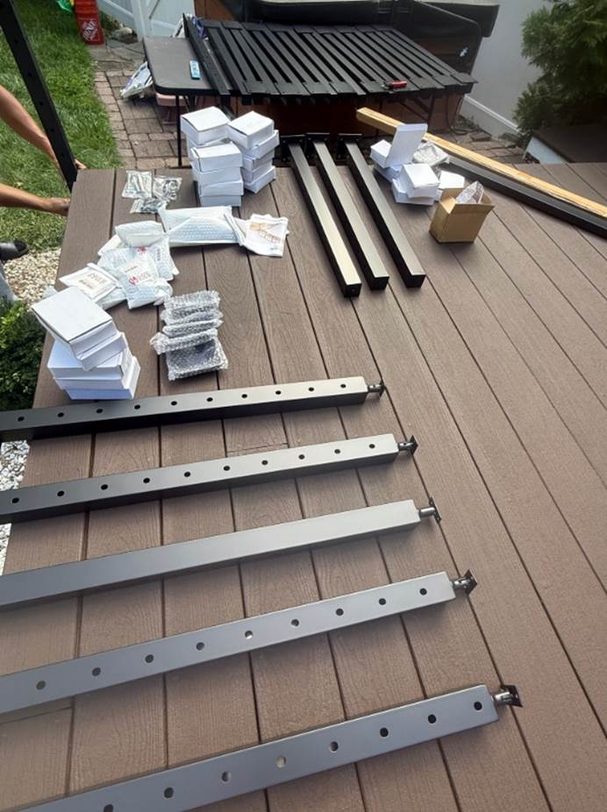

Modern systems like BLIKA Cable Railing make DIY installation more accessible than ever. They come with pre-drilled posts, swageless fittings, and modular kits, so you don’t need special welding or custom tools.
Still, running tensioned cable isn’t as simple as driving a few wood screws. Stainless steel cables exert strong, continuous tension on your structural posts. Minor planning mistakes can quickly result in code failures, sagging lines, bowed posts, or expensive rework.
Below is everything homeowners should understand before buying parts and starting their DIY cable railing build.
1. Check Local Building Codes & Permits First
This step cannot be skipped. Railing safety codes vary by city and county, and failing an inspection means tearing out finished work.
Key Code Takeaway: Keep your cable spacing at 3 inches apart, space your main posts no more than 4 feet apart, and ensure the system supports at least 200 lbs of concentrated load.
- Railing height: Standard residential code requires a minimum guardrail height of 36 inches from the deck floor. Some commercial codes or specific cities require 42 inches. Always check your local municipality’s guidelines first.
- The 4-Inch Sphere Rule: According to the International Residential Code (IRC), a 4-inch sphere should not be able to pass through any part of your railing under tension. Because stainless steel cables have slight flexibility when pushed, space your runs no more than 3 inches apart to stay compliant.
- Maximum post span: Do not space your structural posts too far apart. To prevent cable sagging when someone leans against the system, main posts should be placed no more than 4 feet (48 inches) apart. If your post spacing exceeds 4 feet, you must install intermediate stiffener posts or vertical spacers.
2. Measure Twice: Get a Custom Layout Before You Order
The most common mistake homeowners make is miscalculating the number of posts, end fittings, and total feet of cable needed. Missing a single tensioner or ordering a post with the wrong pre-drilled holes can delay your project by weeks.

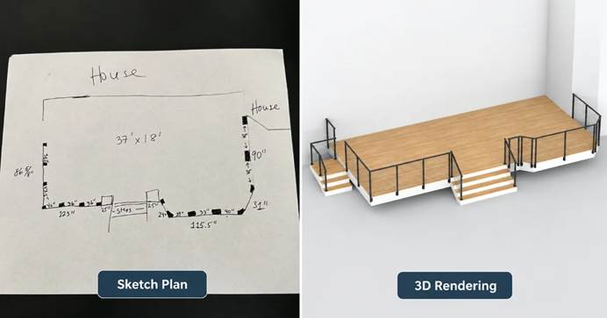

Before buying individual parts, draw a rough sketch of your deck dimensions, including post locations and stair runs. Utilizing a custom planning tool like BLIKA’s free 3D cable railing design service is recommended to accurately map out exact material counts, confirm post hole configurations, and ensure every component matches your specific layout before placing an order.
3. Selecting the Right Cable, Grade, and Posts
Not all railing materials are created equal. Choosing the wrong grade or hardware for your environment can turn a shiny deck into a rusted, sagging eyesore within months.
Material & Hardware Takeaway: Use T304 stainless steel for inland dry environments, but always choose T316 marine-grade steel for coastal areas, humid climates, or poolsides. For outdoor decks, pair 3/16-inch cable with rigid metal or solid wood posts to hold tension.
- Stainless Steel Grades (T304 vs. T316): T304 stainless steel is budget-friendly and works well for interior staircases or inland outdoor decks with low humidity. However, T316 contains added molybdenum to resist salt spray, chlorine, and humidity. If you live within 10 to 15 miles of an ocean coast or build near a pool, T316 is non-negotiable to prevent red rust stains (known as “tea staining”).
- Cable Thickness (1/8″ vs. 3/16″ Cable Railing): 1/8-inch cable works fine for short indoor runs. For outdoor decks and balconies, 3/16-inch cable is the standard DIY choice—it is stronger, stretches less, and holds tension better over time.
- Structural Post Options: Cable tension exerts immense pull on your end posts, so they must be rigid. Powder-coated aluminum or stainless steel posts are the premium choice because they stay straight under heavy tension and require low maintenance. If using wood posts (like cedar or pressure-treated lumber), ensure they are properly sealed; soft untreated wood will bend or crack under cable load.
- Finishes & Matching Kits: Stainless steel gives a classic industrial shine, while black cable railing offers a bold modern look. If you choose black hardware, verify it uses durable powder-coating or PVD (Physical Vapor Deposition) so it won’t chip during setup. Whenever possible, buy complete matching kits to avoid mixing different metals, which causes galvanic corrosion.

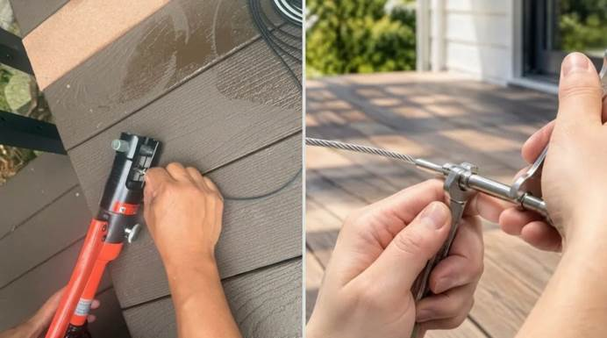

4. Hardware Types: Swage vs. Swageless Systems
Installing cable railing requires securing and tensioning the wire ropes across your posts. The hardware type you choose directly impacts the difficulty of your DIY project.
Hardware Takeaway: Traditional swage hardware requires a hydraulic crimper tool, while swageless (hand-swage) fittings allow easy installation using simple hand wrenches.
- Hydraulic Swage Terminals: These fittings require you to crimp the metal sleeve directly onto the cable using a heavy-duty hydraulic crimping tool. It provides a tight, permanent hold, but requires extra effort and patience.
- Swageless (Tool-Free) Fittings: Swageless hardware uses an internal jaw mechanism that locks onto the cable as you push or thread it in. You only need standard open-end wrenches to tighten the system. This saves time, reduces installer error, and lowers tool rental costs, making swageless hardware the favorite choice for DIYers.
5. Structural Layout, Corner Rules, and Stair Transitions
Most DIY cable railing failures stem from poor layout planning and weak anchor points. Understanding structural forces before drilling a single hole is critical to a rigid, safe installation.
Layout & Framing Takeaway: Maintain main post spacing between 3 and 4 feet, anchor post bases securely into solid deck framing, use dedicated corner posts for 90-degree corners, and use angled bevel washers for stair runs.
- Anchor Base and Plumb Posts: Posts must be perfectly plumb before running cables. Even a tiny tilt will magnify once tension is applied. Anchor your post bases solidly into internal deck joists or concrete footings using heavy-duty bolts—weak anchoring is the leading cause of wobbly railings.
- Post Spacing Limits: Space your posts 3 to 4 feet apart. For high-wind areas or long straight runs, drop the spacing to 3 feet for maximum rigidity. Never exceed 5 feet between posts, or the cables will flex excessively under pressure. If using wood posts, always drill cable holes using a rigid alignment template to prevent crooked runs.
- 90-Degree Corner Solutions (Single vs. Double Posts): Cable tension exerts continuous lateral pull at corners. For standard deck layouts, installing a specialized single corner post (such as BLIKA single corner posts) is the most popular choice—it saves deck space and delivers a clean, modern look without blocking sightlines. Alternatively, you can use double posts spaced a few inches apart to terminate and restart separate cable runs on each side.
- Stair Incline Transitions: Staircases require hardware designed for angles. Accurately measure your stair slope before ordering. You will need adjustable angle tensioners or angle-beveled washers so your end fittings sit perfectly flush against the angled post face.
6. The Art of Proper Cable Tensioning
Getting the tension right separates a professional-grade installation from a sagging or dangerous DIY setup.
- Under-Tightened Cables: Loose lines sag when leaned on or pressed, creating hazard gaps wider than 4 inches that will immediately fail building code inspections.
- Over-Tightened Cables: Over-tightening creates thousands of pounds of inward force on your perimeter posts. This can crack wood posts, bow metal posts, or pull base anchors straight out of the deck framing.
- Pro Tensioning Tip: Always follow the manufacturer’s recommended tension order (typically starting from the center cables and moving outward to balance structural forces). A cable tension gauge removes all guesswork. Once tensioned, test each line using firm thumb pressure—a properly tensioned line will yield slightly and spring back immediately. Finally, secure all lock nuts or setscrews so tension doesn’t back out over time.
7. Low Maintenance Doesn’t Mean Zero Maintenance
While stainless steel cable railing requires far less upkeep than traditional wood spindles, basic seasonal care is essential:
- Routine Cleaning: Rinse your cables and fittings with fresh water and mild soap using a soft cloth every 3 to 6 months. Never use abrasive scrubbers or harsh chemical cleaners, which can scratch the protective chromium oxide layer on stainless steel.
- Coastal and Poolside Care: If you live within 10 miles of an ocean or near a chlorine/saltwater pool, salt residue accelerates surface oxidation. Wash down hardware twice a year to clear salt buildup, and inspect connections for minor rust specks.
- Annual Tension Inspection: Seasonal temperature swings cause metal to expand and contract. It is completely normal to perform a quick tension check and slight re-tightening 6 to 12 months after your initial installation. If using wood posts, re-seal the timber every 1 to 2 years to prevent rot around drilled cable holes.
8. Budget and Timeline
Doing it yourself cuts labor costs by 30% to 50% compared to hiring a contractor.
- Small Straight Runs (10–15 ft): Takes 1 to 2 days for post setup, drilling, hardware mounting, and tensioning.
- Large Decks & Staircases: Takes 2 to 3 days for angle measurements, stair hardware alignment, and code checks.
Final Thoughts
A DIY cable railing installation is one of the most impactful upgrades you can make to your home. It elevates your property value while preserving panoramic outdoor views. By following local building codes, picking marine-grade materials like T316 stainless steel, using easy-to-install swageless hardware, and taking advantage of free 3D layout design services, you can achieve a sleek, high-end, professional result on your own.
