Family Tiny House Plans Barbara

$190.00$390.00

Family tiny house plans with construction process

  • complete set of tiny house plans + CAD set
  • construction progress + comments
  • complete material list + tool list
  • eBook How to build a tiny house included
  • DIY Furniture plans included
  • DIY building cost $20,880

house-sample-plansFREE sample plans
of one of our design

3 Bedroom tiny house Barbara

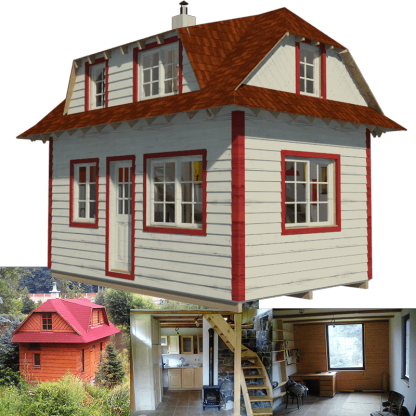

Barbara is a 430 sq. ft. (40 m2) timber frame two-story family small house. This 18′ x 12′-8″ (5,5 m x 3,5 m) 3 bedroom tiny house has a 37 sq. ft. (3,4 m2) mezzanine with one bedroom and 186 sq. ft. (17,3 m2) loft with the other two.

What will you get

Timber construction step by step guide best-small-family-house-plans

Family tiny house plans

Complete set of family tiny house plans (pdf): layouts, details, sections, elevations, material variants, windows, doors

drawings

Complete material list + tool list:

Complete set of material list + tool list. A very detailed description of everything you need to build your family’s small house.

tool-list



3 bedroom small house plans

Family tiny house plans Barbara can be ideal for a four-member family. The ground floor contains all the important facilities and socializing places. You enter into the main space, which serves as a living room, dining room, playing room, room for a family gathering – the core of the house. The kitchen counter is included in this as well, and the whole room is quite spacious and light, with three windows on two sides, but very cozy. You can create an even more homey feeling by putting, for example, a wood-burning stove in, and there is also access to the bathroom with a shower. On top of that is a mezzanine, hidden away from the main room’s hustle in its own private corner behind little wooden stairs. A double bed can be very comfortably put into the mezzanine, and it has its own small window. The stairs then lead to the loft, with a bedroom on each side. Both bedrooms have two windows and can fit in bed and table with some free space remaining. The ceiling height is enough for you to be able to stand up. This practical interior space solution makes Barbara one of our favorite 3 bedroom small house plans.

Construction PDF plans

This 3 bedrooms tiny house is named after the famous Pin-up girl Barbara Stanwyck. It is a very charming small wooden house. The timber frame structure stands on concrete foundation footings and has a half hip-roof. However, another type of building foundation can also be used. Inside this family tiny house, you will find all you need: enough space in the living room/dining room, kitchen, bathroom, and three-bedroom spaces, one located on the mezzanine, other two on the loft. They are accessible through wooden stairs placed right opposite the main entrance. There is one window at the mezzanine and bathroom, two in both bedrooms, and three on the ground floor. It is the same as the other of our family’s tiny house plans or 3 bedroom small house plans, cheap and easy to build. In case you order Barbara, you will receive a proper PDF plan with construction details, measurements, and comprehensible building instructions. Would you like to see what our built plans look like? Check out the references. Or are you intrigued, but Barbara is not exactly the house of your dreams? We have many more! Please browse through our different family tiny house plans, cottage or cabin plans with loft or other categories of our small house plans.

Dimensions

Built-Up Area

214 sq. ft. / 20 m²

Total Floor Area

320 sq. ft. / 29,7 m²

1st. floor

207 sq. ft. (19,25 m2)

Loft

186 sq. ft. (17,3 m2)

Mezzanine

37 sq. ft. (3,4 m2)

L X W

18' x 12'-8" (5,5 m x 3,5 m)

DIY Building cost

$20,880

Format

printed, electronic

Reviews

There are no reviews yet.

Be the first to review “Family Tiny House Plans Barbara”

Your email address will not be published. Required fields are marked *

Your Comments


Guest
Eric Byrd
2 years 9 months ago

Are you open to making this design a little bigger?

Support
2 years 9 months ago

Yes, it’s not a problem.
Please contact me via email at joshua.woodsman@gmail.com for further info.
thank you,
Joshua

Guest
Kelsey Roble
2 years 11 months ago

Can this be designed to be built on a slab?

Support
2 years 10 months ago

Yes, We can modify this design accordingly; please contact us via joshua.woodsman@gmail.com for further information.
Thank you,
Joshua

Guest
Tracy D Northby
2 years 11 months ago

Is it possible to design this home on stilts? We have a waterfront location we are looking and and feel stilts would be a better foundation option.

Support
2 years 11 months ago

Yes, we can modify any design accordingly.
Please contact us via joshua.woodsman@gmail.com
Thank you

Guest
Rachel
3 years 6 months ago

how tall is the mezzanine ceiling?

Support
3 years 6 months ago

approximately 3′

Guest
Mike
3 years 11 months ago

Do you get a set of physical plans or is it all in an email??

Support
3 years 11 months ago

You will automatically receive an email with a download link. We can also send you printed plans, but it will take some time..

Guest
Mollie
4 years 7 months ago

What is the ceiling height in the two loft bedrooms?

Support
4 years 7 months ago

2,2 m / 7.25 ft in the highest point

Guest
Dominic
6 years 7 months ago

Hello this plan is in imperial units and for the metric system length 5.6 or width 3.6 is not efficient, do you plan to have this in normal metric units?

Support
6 years 7 months ago

Hello, why do you think it’s not effective?

Guest
Dominic
6 years 7 months ago

Because in the metric countries planks go in sizes 1m, 3m, 6m etc. i do not see exact buildings plans but I think that this would generate excessive wood waste. Besides we do not get exact sq meters after house is built 3.6x 5.6 is 20.16 sq meters which would generate some issues with state registries. I would imagine 6×4 would be more consistent. Also, when building nobody measures walls in cm, accepted measurement is in meters unless some specific project is developed for some
Niche place. Another question – in EU we need energy rating. Is there energy rating for this house?

Support
6 years 7 months ago

I live in the middle of EU (Czech Republic). Here the boards, beams etc is ordered directly from the processor. I can order any size and any profile I want and it’s the cheapest solution. There are so many codes in the world as the states, so plans can not be optimized for everyone. It depends on the calculation and on many factors – altitude, type of insulation, type of heating etc.
Joshua

Guest
Linn Kyaw Thu
7 years 22 days ago

Can I take from my country Myanmar ? Please tell me

Support
7 years 21 days ago

We sell construction plans – you buy them, you get the material and you build it yourself (with a help from some friends or builders, in case you have no construction experience). You buy our plans online and they are sent to your email the moment you complete the order. So you can do that from any country in the world.

Guest
Myint Sandar
7 years 23 days ago

If I buy Barbara plan, can u send our country (Myanmar). How much cost for shipping charges?

Guest
aungmyatthu
7 years 22 days ago

မျမင့္စႏၵာ ဒီအိမ္ေလး မွာျဖစ္လား

Guest
aungmyatthu
7 years 22 days ago

မျမင့္စႏၵာ ဒီအိမ္ေလး မွာျဖစ္လား
အၿပီးအစီးဘယ္ေလာက္က်လဲ သိခ်င္လို႔ပါ
please!

Guest
aungmyatthu
7 years 22 days ago

မျမင့္စႏၵာ အဲ့အိမ္ေလးမွာျဖစ္လား
ကြ်န္ေတာ္ စိတ္ဝင္စားလို႔ ပါ မွာျဖစ္တယ္ဆို အၿပီးအစီး ဘယ္ေလာက္က်လဲ please!

Support
7 years 23 days ago

We sell construction plans – you buy them, you get the material and you build it yourself (with a help from some friends or builders, in case you have no construction experience). You buy our plans online and they are sent to your email the moment you complete the order. So you can do that from any country in the world and there are no shipping costs.

Guest
Heather
7 years 5 months ago

Can this be modified to fit on a trailer…to make it a t.h.o.w?

Guest
Cass
7 years 5 months ago

For someone with a max budget of USD $10,000, what kind of dimensions would the house be reduced to? How much smaller would the plan have to be? What would change about the house, if anything?

Sorry for all the questions! I’ve been considering a tiny house for a while and discovered your site very recently. I’m still pretty indecisive about the whole thing haha x

Guest
Cass
7 years 5 months ago

Also, is it possible to integrate a central heating and cooling system into these plans? What would the cost of doing so be? Again, sorry for all the questions! x

Support
7 years 5 months ago

Yes, it´s possible but it depends on the type of heating/ cooling system you have on your mind..for more information please contact me via email.

Guest
Andrew swann
7 years 6 months ago

Do you get all the peices or just the plan, is there a way to get the pieces for the house.

Support
7 years 6 months ago

Hello,
you get the plan and material description

Guest
Anne
7 years 6 months ago

I Believe this is the PERFECT design for me …. I’m not very “handy”, engineering capable = ) . Do you know or have individuals who will build .

Support
7 years 6 months ago

Hello,
yes I know, but just in the Europe:-)

Guest
Lori
7 years 10 months ago

Is there room for a full size fridge? Is it possible to have washer/dryer hookups in the bathroom?

Support
7 years 9 months ago

Hello,
yes, there is enough room for this equipment.

Guest
Aaron Eaves
8 years 2 months ago

How much would this plan cost if done 24 ft. long by 16 ft. wide? and 20 ft. tall?

Support
8 years 2 months ago

It´s completely new project 🙂 I guess around USD 950.
