Pentagon Cabin Plans Ann

$139.00

Pentagon cabin plans with the construction process

  • complete set of cabin plans + CAD set

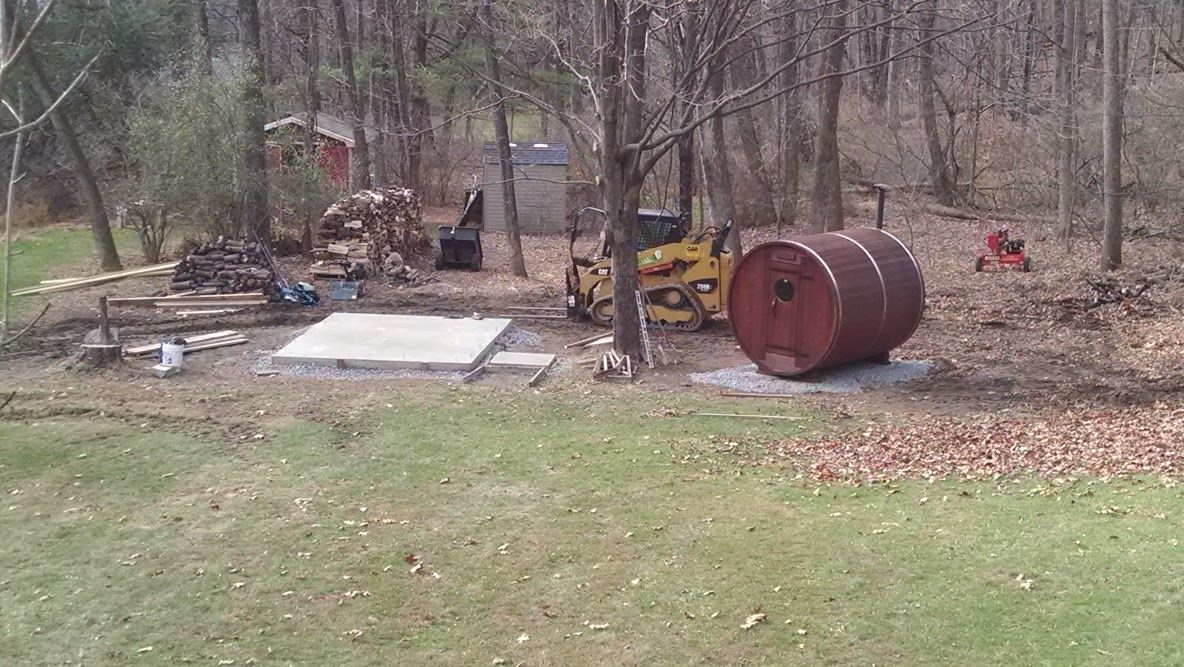

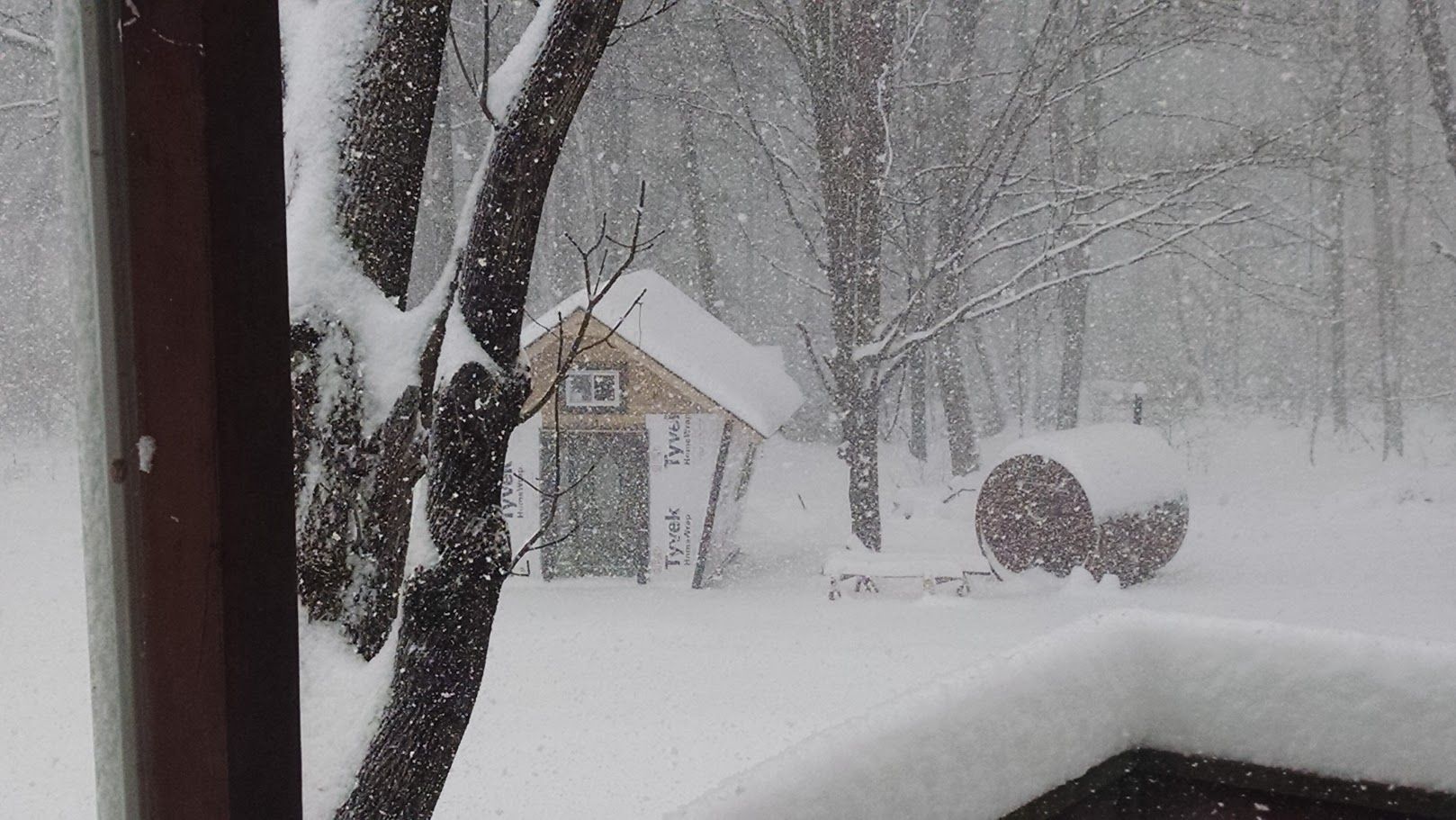

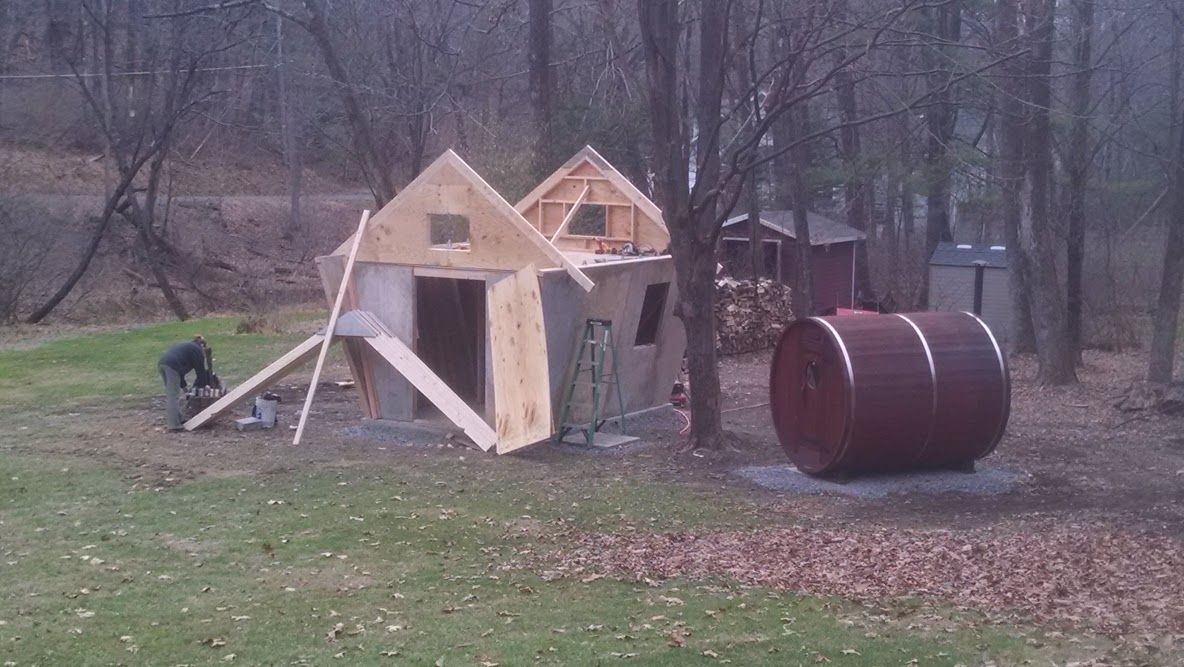

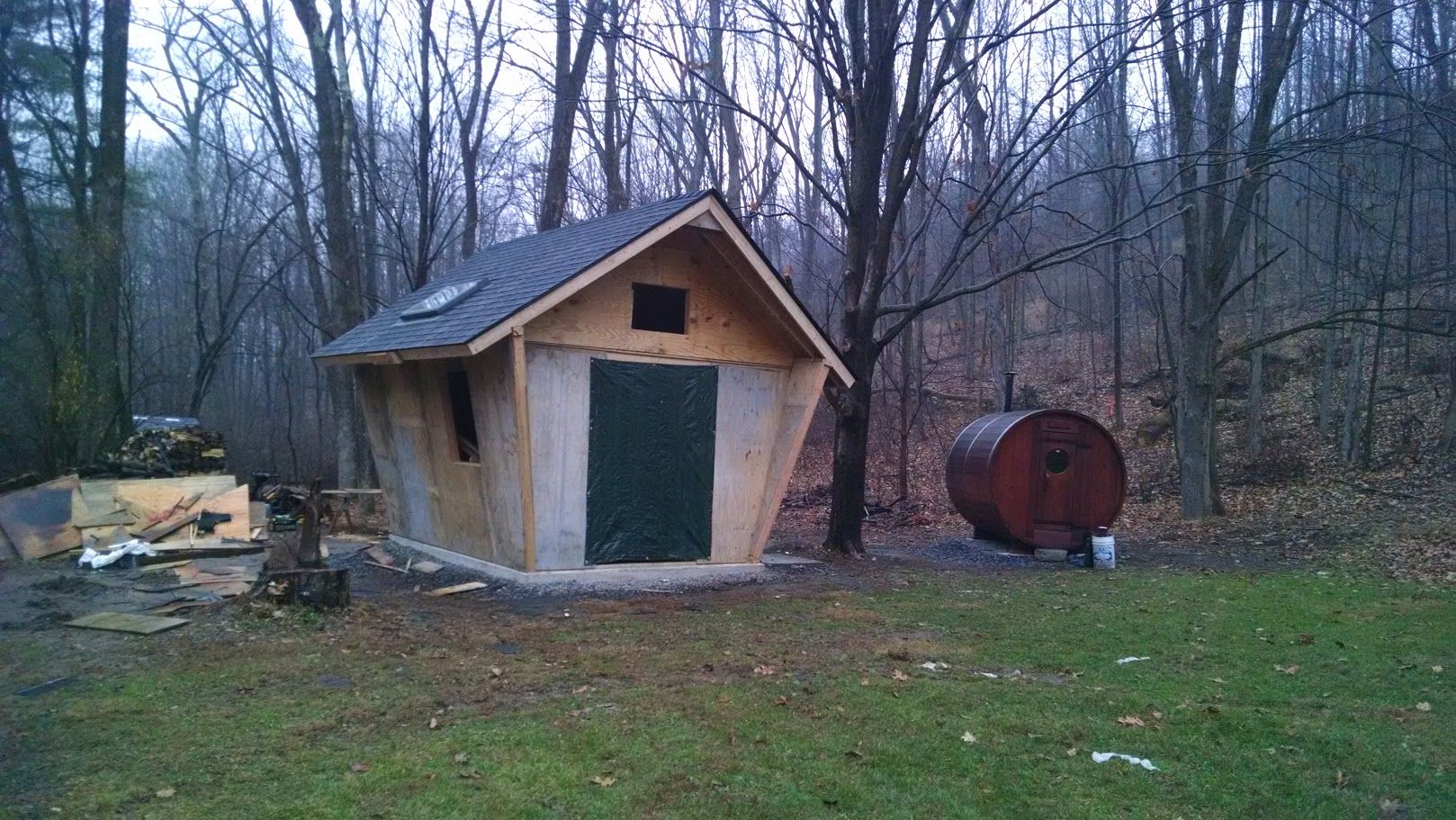

  • construction progress + comments
  • complete material list + tool list
  • eBook How to build a tiny house included
  • DIY building cost $7,200
  • You can find a printed version of cottage Ann plans  together with 8 other designs in our new book Cabin Plans.

house-sample-plansFREE sample plans
of one of our design

Tiny cabin plans Ann

DIY cabin Ann is 329 sq. ft. (30,5 m2) small 1 bedroom wooden cabin with gable roof and walls tilted slightly towards outside. Its 18′-7″ x 9′-7″ (5,3 x 2,9 m) ground floor space provides access to the 164 sq. ft. (15,2 m2) sleeping loft as well as the 43 sq. ft. (4 m2) front porch.

Are you interested in the BIGGER pentagon cabin? Please, CLICK HERE.

What will you get

Timber construction step by step guide

 pentagon-tiny-house-plans

Pentagon cabin construction plans

Complete set of pentagon cabin plans (pdf): layouts, details, sections, elevations, material variants, windows, doors

drawings

eBook How to Build a Tiny House Included

  • Over 1000 illustrations
  • 276 pages

Complete material list + tool list:

Complete set of material list + tool list. A very detailed description of everything you need to build your pentagon cabin.

tool-list

Cabin plans with loft

Pentagon cabin plans Ann are building plans for one of our sweet little wooden houses perfect for the occasional vacation, a weekend spent in peace in some beautiful countryside, or fun moments with your friends or family. Ann’s most striking feature is the walls slightly tilted towards the outside, which makes the interior space feel bigger, and especially the loft can benefit from more floor area because of that. It is accessible through a little wooden staircase and is quite spacious to provide a comfortable sleeping space or private relaxing corner. No need to worry about light in the loft either, as there are two gable end windows and another two skylights, so you can also enjoy the view of the sky. On the ground floor, you can enjoy the views together with fresh air and sunshine on the front porch, a delightful addition to space, just put some chair or armchair and take a cup of coffee. You can continue inside into the main central area from the porch, which can serve your everyday activities, socializing, relaxing, having a meal, or anything else you can think of. Cabin plans with loft Ann have basically all you need.

Construction PDF plans

Tiny cabin plans Ann is named after famous Pin-up girl Anne Gwynne and is a popular one from our cabin plans with loft. It is a simple structure with a basic timber framework, a floor made of wooden floor joists, walls completed with OSB boards, and cladding with wooden planks used for the roof covered with metal sheeting. The construction can stand, for example, on a concrete foundation slab, its walls are tilted towards the outside, and it has a traditional gable roof with space for a sleeping loft. That is easily accessible through small wooden stairs leading from the main floor, and the interior is lit through windows on all four sides of the cabin and in the loft area. As we already said, Ann is a cute little house that could make you very happy! You could also browse through our other tiny cabin plans. You may also be interested in tiny houses with lofts and cottages with porch. Or maybe you are curious to see our entire offer of various small house plans.

Are you interested in the BIGGER pentagon cabin? Please, CLICK HERE.

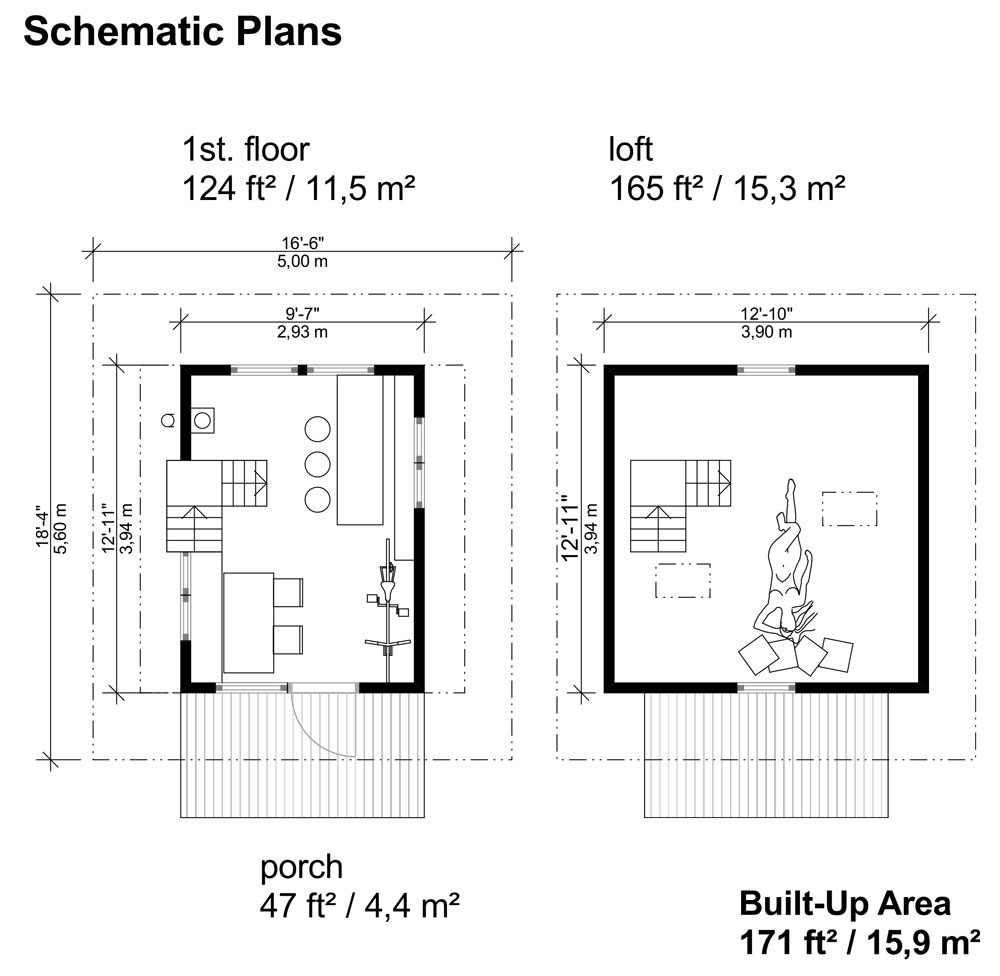

Dimensions

Total Floor Area

336 sq. ft. / 31,2 m²

1st. floor

122 sq. ft. (11,3 m2)

Loft

164 sq. ft. (15,2 m2)

Porch

43 sq. ft. (4 m2)

L X W

18'-7" x 9'-7" (5,3 m x 2,9 m)

DIY Building cost

$7,200

Built-Up Area

171 sq. ft. / 15,9 m²

Reviews

There are no reviews yet.

Be the first to review “Pentagon Cabin Plans Ann”

Your email address will not be published. Required fields are marked *

Your Comments


Guest
Rebecca
1 year 13 days ago

Trying to figure out the cost of actually building this cabin so wondering what the dimensions of the window is

Support
1 year 5 days ago

The main entrance door/french window is 82″ x 70″

Guest
Jorge Dias
3 years 12 days ago

I live in Portugal.
Me question is: Do you supply the planos in an editable form in order to permite a translation / adaptation for local requirements from authorities?
Thanks

Support
2 years 11 months ago

I´m sorry, but I´m not experienced with portugal building authorities. But our plans are in EU standards..

Guest
Greg Yurash
3 years 1 month ago

I love this Ann design, but I need it re-sized for a 12’x14′ footprint. Can I pay you to do this for me?

Support
3 years 1 month ago

Hello,
of course, please contact me via email for further info.
Thank you

Guest
Starr Peri
5 years 2 months ago

Do these cabins have outlets for electronic devices? Also are there instructions for solar panels included if you purchase the plan?

Support
5 years 2 months ago

Not, just building construction, material, etc.
